Description

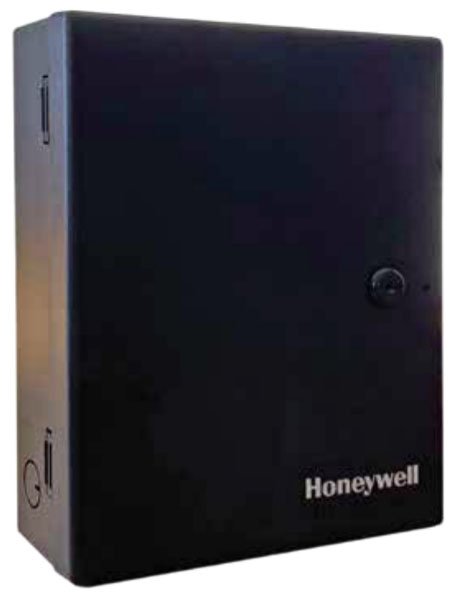

CLSS Gateway HON-CGW-MBB Honeywell
The CLSS Gateway is Honeywell Fire’s interface connecting to a Honeywell fire system panel or network, serving as a portal between the panel, the Cloud, and peripheral devices.
The CLSS Gateway enables reading the connected device system inventory from one panel or a network of panels and transmitting this data to the Connected Life Safety Services (CLSS) Cloud. The gateway board can be connected with the CLSS Cloud, a configuration computer, a panel, a mobile device, and an external power supply. The CLSS Gateway is a key component for optimizing CLSS functionality.
The CLSS Gateway can also be used as a Fire Alarm Communicator to central station when used with the optional cellular module and feature activation.
Features
CLSS Gateway HON-CGW-MBB Honeywell
- Connects directly to NOTIFIER Fire Alarm Control Panels or a network of FACPs
- Easy connection between the Gateway and CLSS CheckPoint mobile application
- BlueTooth® mobile pairing for Gateway Configuration and Control capability
- Panel connection options include Standalone Panel, Networked Panel, and Standalone with Digital Voice Control
- Wireless or Wired Connection from the Gateway to the CLSS Cloud
- Serves as a Fire Alarm Communicator to central station when used with optional cellular module and feature activation
- The FACP connected to the Gateway (the master panel) collects system data and sends it to the Cloud via the Gateway
- Can be used for portable or permanently installed applications
Specifications
CLSS Gateway HON-CGW-MBB Honeywell
Power Requirements
- Nominal Voltage Range: Consumes 12V to 32V DC from the fire alarm control panel (FACP) or from an external power source.
- Current: The power requirement varies with the number of interfaces used
- Typical Current Consumption: 0.1A at 24V (with wireless connection)
- Peak Load: 0.25A at 24V
Environment
- Temperature: 14°F to 140°F (-10°C to 60°C)
- Relative Humidity: 1% – 94% (noncondensing) Wireless Transmitter
Wireless Transmitter Specifications
- VBAT: 3.6V
- Ambient Temperature: 77°F (25° C)
- Output power: @module RF antenna port
- Target power: Meets Spectrum Mask and EVM compliance
Standards and Codes
- FCC ID: PV3CGWMBB
- Intertek ID: 104270338NYM-001
- CE Certification Meeting:
o EMC Directive 2014/30/EU
o Low Voltage Directive (LVD) 2014/35/EU
o Radio Equipment Directive 2014/53/EU
o RoHS Directive 2011/65/EU
o WEEE Directive 2012/19/EU
- Meets the following additional requirements:
o EFSG [BRE,AFNOR/CNPP, and VdS]
o Incert
o SBSC
o EMEA
o EAC
