NOTIFIER Gateways
NOTIFIER Gateways provide the interface between networks and Fire Alarm Control Panels.
Request InformationDescription
NOTIFIER Gateways provide the interface between networks and Fire Alarm Control Panels. See individual product tabs for Features, Specifications, Diagrams, etc.
MODBUS-GW NOTIFIER Modbus Gateway
LEDSIGN-GW NOTIFIER LED Sign Gateway
CAP-GW NOTIFIER Common Alerting Protocol Gateway
DACR-GW NOTIFIER Receivers Gateway
VESDA-HLI-GW NOTIFIER VESDA Gateway
NFN-GW-PC-HNW-2 NOTIFIER ONYXWorks NFN Gateway
NFN-GW-EM-3 NOTIFIER ONYXWorks NFN Gateway
MODBUS-GW
NOTIFIER Modbus Gateway
The Modbus Gateway provides a communication link between networks that use the Modbus/TCP communication protocol and Fire Alarm Control Panels (FACPs) resident on an NFN network. It provides data such as event type, active/inactive, enabled/disabled, acknowledged/unacknowledged, device type, analog value (4-20ma modules only) and system troubles.
NOTIFIER MODBUS-GW Modbus Gateway Data Sheet
Request Information
Description:
The Modbus Gateway communicates with the NOTI-FIRENET network via the network port on any NCM. The Modbus communication protocol is consistent with Modbus Application Protocol Specification V1.1b.
The Modbus Gateway is designed to need very little configuration; no separate configuration utility is required. In most applications you will only need to enter the TCP/IP settings for your network and the nodes you would like to monitor. The gateway will automatically map all the configured points and supply you with a user friendly comma-separated value report that defines the mapping.
Features:
- Compatible with standard and high speed NOTI-FIRENET.
- Monitor four compatible NFN or HS-NFN nodes not including the Modbus Gateway node itself.
- Provide data such as event type, active/inactive, enabled/disabled, acknowledged/unacknowledged, device type, analog value (4-20ma modules only) and system troubles.
- Support reads of up to 100 registers at a time. Analog values can be read 10 registers at a time.
- Log diagnostic information.
- Send standard Modbus exception responses.
- Reduce configuration time by auto-discovering and mapping points.
MODBUS MASTERS COMPATIBLE
- The Modbus Gateway was designed to be compatible with standard Modbus/TCP masters.
- Support one-byte Unit IDs.
- Have configurable polling times.
- The Modbus Gateway supports one Modbus Master.
PANEL COMPATIBLE
The Modbus Gateway was designed to be compatible with the following panels:
- NFS-320
- NFS-640
- NFS2-640
- NFS-3030
- NFS2-3030
Standards and Codes
The Modbus Gateway is recognized by UL as an ancillary (supplementary) reporting device. It complies with the following UL/ULC Standards and NFPA 72 Fire Alarm Systems requirements.
- UL 864: Control Units for Fire Alarm Systems, Ninth Edition
- UL 2017: General-Purpose Signaling Devices and Systems, First Edition
- CAN/ULC-S527-99: Standard for Control Units for Fire Alarm Systems, Second Edition
- CAN/ULC-S559-04: Equipment for Fire Signal Receiving Centres and Systems, First Edition
Listings and Approvals
These listings and approvals apply to the modules specified in this document. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
- UL/ULC Listed: S635
- CSFM: 7300-0028:250
- FDNY: COA#6047
System Architecture & Requirements
An Internet or Intranet IP network connection is required to configure the Modbus Gateway, and to connect it with Modbus clients. The Internet or Intranet IP network connection must meet the following requirements.
- Private of Business LAN
- Static IP address required
- Standard 100Base-T connection
- Required Ports(s): 502
REQUIRED EQUIPMENT
- MODBUS-GW-NFN Modbus Embedded Gateway.
- Network Control Module
- NFN Network – Version 5.0 or above
NETWORK COMPONENTS
- RJ45 to RJ45 standard Ethernet network cable-customer’s internet or intranet connection to Modbus Gateway
- NFN network-version 5.0 or above (sold separately)
- High Speed Network Communication Module: HS-NCMW/SF/MF board-used to facilitate network communication between the Modbus Gateway and a High Speed NFN network or Network Communication Module: NCM-W/F board-used to facilitate network communication between the Modbus Gateway and an NFN network.
- Cabinet and Hardware (sold separately)
- CAB-4 series cabinet.
- CHS-4L chassis.
CUSTOMER SUPPLIED EQUIPMENT
- Windows XP Professional with Internet Explorer running Java version 6 or higher
Sample Systems:
LEDSIGN-GW
NOTIFIER LED Sign Gateway
Instant and Integrated Emergency Notification System.
NOTIFIER LED Sign Gateway LEDSIGN-GW Data Sheet
Request Information
The LEDSIGN-GW Sign Interface monitors events on NOTI-FIRE-NET™ networks and generates appropriate messages on OAX2-24V2 LED displays.
The LED Sign Interface is a key part of an Emergency Communications Response System (ECRS). Monitors events on one or more NFN network(s) and generates appropriate messages for up to ten OAX2-24V2 LED Displays. The NFN networks communicate with the LED Sign Interface through NFN Gateways over TCP/IP. Multiple sign gateways can communicate on the same NFN network if more than 10 signs are required.
Features:
- Controls up to 10 signs with message displays.
- Receives zone activations from up to 50 NFN Gateways.
- Stores 100 messages per Gateway.
- Contains predefined industry standard emergency messages that can be edited.
- Transmits custom or default messages according to defined priorities.
- Enables a predefined “System Normal” message to be displayed when there are no events.
- Overrides system-generated messages if it receives manually activated messages from the ONYXWorks Workstation. ONYXWorks is not a required component but does add additional capabilities to the gateway.
Compatible NFN Node Types and Networked Panels
LEDSIGN-GW is compatible with NOTI•FIRE•NET and High-Speed NOTI•FIRE•NET. An NFN gateway v3.16 (or later) must be used to interface with the NFN or fire alarm control panel.
Required Equipment
LEDSIGN-GW: UL-listed sign gateway. Interfaces with NOTI•FIRE•NET networks.
- Includes PNET-1 surge suppressor.
- Includes RJ45-RJ45 standard Ethernet network cable (PN 75585, provides gateway’s TCP connection).
OAX2-24V2: UL-listed LED sign. Sold separately.
- Includes PNET-1 surge suppressor.
- Customer to supply RJ45-RJ45 standard Ethernet network cable (provides PNET-1’s internet/intranet connection) and standard Ethernet network cable (connects sign to gateway).
LEDSIGN-GW Architecture
CAPABILITY
- Maximum number of NFN Gateways per sign interface: 50
- Maximum number of sign gateways per NFN gateway: 25*
- Maximum number of signs per LEDSIGN-GW: 10
- Maximum number of OAX2-24V2 signs supported per NFN gateway: 250
- Time from event initiation to display on sign (typical): 8 seconds
- Number of messages stored in LEDSIGN-GW: 100
- Maximum number of logic equations: 50
System Architecture and Data Flow
* The NFN gateway supports up to 50 client connections. This number includes workstations and other clients that get data from the gateway.
System Specifications
OAX2-24V2 SPECIFICATIONS
- LED Colors: Three colors (red, yellow, green).
- LED Size (Diameter): 0.2” (5 mm).
- LED Spacing (Pitch): 0.3” (7.6 mm).
- Character Set: Block profile (sans serif), upper/lower case.
- Ethernet: TCP/IP connectivity.
- Power: 24V DC, 0.5A
- Mounting: Tilt Wall Mount Bracket, VESA 100mm included
- Weight: 6 lbs.
- Dimensions: 7″H x 36″W x 1.75″D
LEDSIGN-GW SPECIFICATIONS
The LEDSIGN-GW requires +24VDC @400mA nominal and supervised battery backup in accordance with local code requirements.
TEMPERATURE AND HUMIDITY RANGES
This system meets NFPA requirements for operation at 0 – 49°C/32 – 120°F and at a relative humidity 93% ± 2% RH (noncondensing) at 32°C ± 2°C (90°F ± 3°F). However, the useful life of the system’s standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and its peripherals be installed in an environment with a normal room temperature of 15 – 27°C/60 – 80°F.
CAP-GW
NOTIFIER Common Alerting Protocol Gateway
The Common Alerting Protocol (CAP) Gateway is a communication interface using CAP messaging between the NOTI-FIRE-NET network and a CAP-compliant Distributed Recipients Mass Notification System (DRMNS). The CAP Gateway translates zone activations on a standard or high-speed NFN network to industry standard CAP messages for CAP-compliant consumers.
NOTIFIER Common Alerting Protocol Gateway CAP-GW Data Sheet
Request Information
Features and Benefits:
- Receives zone activations from up to 50 NFN Gateways
- Stores up to 10 outputs (Atom Feeds, Flat File Systems)
- Supports up to 1000 active alerts across all outputs (global maximum)
- Supports up to 25 simultaneously connected users of CAP consumer
- Configures up to 100 CAP Alerts
- UL/ULC Listed
Specifications:
- Power input: 24 VDC Input current: 125 mA @ 24 VDC
- The CAP-GW must be powered by a UL1481 and/or UL 864 listed, regulated, power-limited, battery-backed, 24 VDC power supply
- For Canadian installation, the CAP-GW must be powered by a ULC-listed, regulated, 24 VDC power output, Fire Alarm Control Unit; or a ULC-listed, regulated, 24 VDC power supply for fire application
- Network Interface: NOTI-FIRE-NET, High Speed NOTI-FIRE-NET
Listings:
- UL 864
- UL 1076
- UL 2017
- ULC S527-99
- ULC: S559-04
- UL / ULC: S5697
Sample System:
DACR-GW
NOTIFIER Receivers Gateway
The Receivers Gateway is an intelligent gateway interface that facilitates the monitoring of all events transmitted by fire alarm and security control panels equipped with digital alarm communicator transmitters (DACT).
The Receivers Gateway is an intelligent gateway interface to digital alarm communicator receivers (DACR) for the ONYXWorks® facilities monitoring workstation. This gateway facilitates monitoring of all events transmitted by fire alarm and security control panels equipped with digital alarm communicator transmitters (DACT). The Receivers Gateway eliminates the need to add leased lines or internet connections to many remote buildings and combine various fire alarm control panels onto a single platform.
This software-based gateway supports a supervised RS-232 interface for digital alarm communicator receivers. Perform central monitoring station tasks by combining the Workstation and the Receivers Gateway. The Receivers Gateway is an ideal addition to the ONYXWorks® systems integration platform.
NOTIFIER Receivers Gateway DACR-GW Data Sheet
Request Information
Features and Benefits:
- Compatible Receivers; Bosch D6600 and Teldat Visor Alarm
- Automatic remote site supervision using periodic test messages
- Uses standard phone lines and digital dialer equipment
- UL Listed
Specifications:
PC Version:
- ONYXWorks workstation required
- DB-9 to DB-9 serial cables
Listings:
- UL/ULC Listed: S5526; S6010
- CSFM: 7300-1525:103 (DACR-GW)
Applications:
VESDA-HLI-GW
NOTIFIER VESDA Gateway
The VESDA-HLI-GW provides a communication link between the NFN network and the VESDAnet that enables event notification and control of devices on the VESDAnet through the NFN network. Event notifications are displayed on the fire network annunciators. Control can be initiated from these annunciators.
NOTIFIER VESDA Gateway VESDA-HLI-GW Data Sheet
Request Information
Features and Benefits:
- Communicates with the VHX-1420-HFS using Modbus protocol via RS-232 cables
- Supervises the communications to the VHX-1420-HFS
- Monitors up to 100 detectors
- Enables zone mapping
- Provides DCC mode as required for Canadian applications
Specifications:
- Power input: 24 VDC Input current: 460 mA @ 24 VDC with or without Network Communications Module
- VESDA-HLI-GW and VHX-1420-HFS comply with the following standards and requirements:
- NFPA 72 National Fire Alarm Code
- UL 864, 9th Edition: Control Units for Fire Alarm Systems
- CAN/ULC S527-99, 2nd Edition: Standard for Control Units for Fire Alarm Systems
- CAN: CSA C22.1
Listings:
- UL 864
- CAN/ULC S527-99

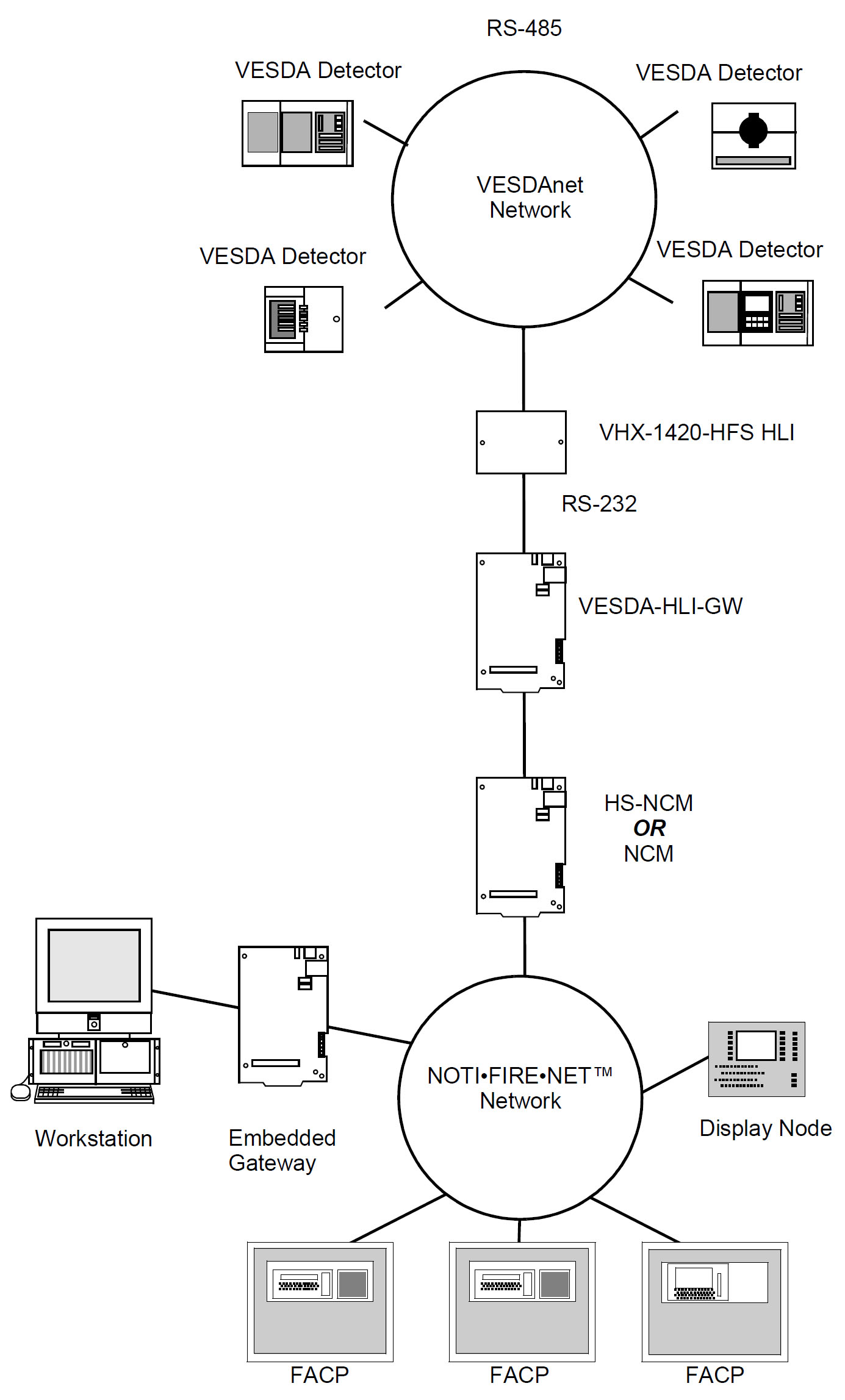

Sample System:
NFN-GW
NOTIFIER NFN Gateways
NFN-GW-PC-HNW-2: NOTI-FIRE-NET™ Gateway PC Card
NFN-GW-EM-3: The NOTI-FIRE-NET™ Gateway (Embedded) is an intelligent gateway interface for the ONYXWorks® workstation.
The NOTI•FIRE•NET™ intelligent gateway facilitates complete monitoring and control of a (standard or high-speed) NOTI•FIRE•NET™ network. The embedded gateway is a standalone version is equipped with IP capability thus enabling ONYX® Series users to monitor multiple sites over an Ethernet network without the need for remote workstations.
NOTIFIER ONYXWorks NFN Gateways Data Sheet
Request Information
Features and Benefits:
- Supports fire alarm control panel programming upload/ downloads and modifications
- Embedded gateway allows remote IP connections and increases scalability of network
- Supervised IP connections for remote workstations and gateways
- Multiple workstations can access the gateway at the same time
- Gateway redundancy for network survivability
- UL/ULC Listed
Specifications:
- Power input: 24 VDC
- Input current: 450 mA @ 24 VDC (without NCM)
- Direct connection to NFS2-640, NFS-640, NFS-320, NFS2-3030, and NFS-3030 fire alarm control panels. NCM required for connection to NOTI•FIRE•NET™, and HS-NCM for connection to high-speed network. (See data sheets DN-6861 and DN-60454)
Listings:
- UL / ULC: S5697
- CSFM: 7300-1525:103
Sample Systems:
