NOTIFIER NCD Network Control Display provides an enhanced 10″ high definition color touchscreen and user-friendly functionality for system wide network management.

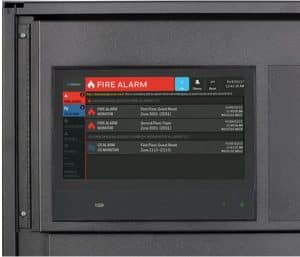

NOTIFIER NCD Network Control Display Annunciator Fire Alarm
The Network Control Display (NCD) is the next generation of network control annunciators for the NOTIFIER Systems. With a new modern contemporary design, the NCD meets today’s building aesthetic needs. The intuitive color 10” touch screen provides color coded information of detailed system status and point information.
It is compatible with NOTIFIER INSPIRE and ONYX Series nodes as well as the NCA-2. The NCD provides system control and display capabilities for selected or all network nodes, with updated display features to match building aesthetics and user security requirements.
The NCD can be used as the primary display for ONYX Series FACP’s by utilizing Direct Connect. When connected to one or more networked panels the NCD provides network control and status display capabilities.
Benefits of NOTIFIER NCD Network Control Display
Quick identification of event information
Interactive Summary Event Count Display
Intuitive user guidance program
Environmental adjustment controls to maximize LCD legibility
Full supervision of all inputs and network integrity
10″ 1024×600 high definition color touchscreen
Full command and control over entire network
Color coded Icon based event notification
Customizable instructional text
Can be used as FACP primary display
Supports Digital Voice Command (DVC) for network audio applications
Inherently regenerative system. Each node acts as a repeater to reshape and regenerate data signals
Supports standard and high speeds network systems
Specifications
ELECTRICAL REQUIREMENTS
The NCD may be powered from any UL Listed non-resettable 24 VDC source from a NOTIFIER compatible fire panel (see panel data sheets).
Power source:
The N16 on board power supply
PMB-AUX
The NFS2-640 and NFS-320 on-board power supply
AMPS-24 (120 VAC, 50/60 Hz) or AMPS-24E (240 VAC, 50/60 Hz) power supply
A supervised +24 VDC power supply that is UL-listed for fire protective service. Current consumption: 360 mA
PHYSICAL SPECIFICATIONS Weight: 3 lbs (1.36 kilograms). Temperature and Humidity Ranges: This system meets NFPA requirements for operation at 0°C to 49°C (32°F to 120°F); and at a relative humidity (non-condensing) of 85% at 30°C (86°F) per NFPA. However, the useful life of the system’s standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and all peripherals be installed in an environment with a nominal room temperature of 15°C to 27°C (60°F to 80°F).
Agency Listings and Approvals
The file number(s) below reference the specific listings for the modules in this document. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status. UL Listed: S635. FM Approved CSFM: 7165-0028:0516 FDNY: COA#001761
Standards and Codes
These listings and approvals below apply to the NCD. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
UL 864, 10th edition
NFPA 72 National Fire Protection Association
NDC Features
The Network Control Display (NCD) is the next generation of network control annunciators for the NOTI•FIRE•NET™ network. Its contemporary design meets today’s building aesthetics. The intuitive 1024 x 600 10″ touch screen provides detailed color coded system status and point information. It is compatible with NOTIFIER INSPIRE™ and ONYX® series fire alarm control panels (FACP) and nodes such as the INSPIRE N16e/x FACPs, ACM-30 annunciator and RLD remote display as well as the ONYX NFS2-3030, NFS2-640, and NFS-320 FACPs.
The NCD provides system control and status/history display capabilities for all, or for selected network nodes. It can also be used as the primary display for control and status capabilities on a displayless node via Direct Connect.
Hardware Features
Full supervision of all inputs and network integrity.
High definition 10″ 1024 x 600 color touchscreen display.
LED status indicators for power and off normal
Requires 24 VDC, and a network connection or direct connect.
Three USB 2.0 connections, USB C, USB Micro, and USB A.
Trouble Relay.
Tamper and Trouble inputs.
Function Features
Device information, including point address and description, can be quickly identified.
Network-wide: Acknowledge, Silence, Reset.
Lamp Test.
Interactive Summary Event Count display and event handling.
Intuitive user guidance program.
Fully programmable node-mapping subsystem.
Up to 2000 programmable logic zones
Up to 32 custom action buttons
Environmental adjustment controls to maximize display legibility.
Color coded Icon based event notification.
Can be used as FACP primary display.
Supports standard and high speed network systems.
Event vectoring for quick viewing of event groups.
Virtual alphanumeric QWERTY keypad and numeric keypad displays when data input is needed.
Individual Enable/Disable or group Enable/Disable for networked ONYX and INSPIRE series panels.
Control ON/OFF for networked ONYX and INSPIRE series panel control points.
Read Status networked ONYX and INSPIRE series panel points and zones.
History Buffer (10,000 events, 3000 displayed).
Up to 50 unique users and 5 different user levels.
Read Status from event display.
History filters for report displaying.
Timer control for Auto Silence, AC Fail Delay.
Custom wallpaper
NCD Indicators and Controls
LED INDICATORS
NOTIFIER NCD Network Control Display Indicators Controls
Green LED illuminates when 24 VDC power is applied; When on battery backup, the green LED will not illuminate.
Yellow LED illuminates when an off normal condition exists.
VIRTUAL EVENT INDICATORS
FIRE ALARM (red) illuminates when at least one fire alarm event exists.
CO Alarm (blue) illuminates when at least one CO alarm event exists.
SUPERVISORY (yellow) illuminates when at least one supervisory event exists (i.e., sprinkler valve off normal, low pressure, fire pump running, guard’s tour, etc.).
TROUBLE (yellow) illuminates when at least one trouble event exists.
POINT DISABLED (yellow) illuminates when at least one disable exists on the network or in the system.
OTHER (varies) illuminates for SECURITY, PRE-ALARM, CO PRE-ALARM, and CRITICAL PROCESS.
SIGNALS SILENCED (yellow) illuminates if the NCD Silence touch point has been pressed or if any other node sent a Network Silence command.
FUNCTION TOUCHPOINTS
Menu
Login
Acknowledge
Signal Silence
System Reset
Drill
Ack (Acknowledge) Tap this touchpoint to acknowledge off all active events. Silence (Signal Silence) Tap this touchpoint to turn off all control modules, notification appliance circuits, and panel output circuits that have been programmed as Silenceable. Reset (System Reset) Tap this touchpoint to clear all latched alarms and other events and clear event indicators. Drill Hold this touchpoint down for two seconds, to activate all silenceable output circuits. NOTE: When enabled, the drill touchpoint will be displayed in the Alert Bar.
MENU FUNCTION TOUCHPOINTS
Menu function touchpoints are accessed with the menu dialogs.
ABOUT – tap this touchpoint to view current firmware and hardware revision numbers.
DISPLAY – tap this touchpoint to adjust display settings.
LAMP TEST – tap this touchpoint to test display pixels, LED indicators and piezo.
