Linear’s Access Control Systems deliver a perfect balance of true security and extraordinary convenience. Whether you need security for one access point, or hundreds, we have a solution for your needs today and scalable for tomorrow’s needs.
The ideal access control system balances the competing demands for security and convenience. It fulfills a wide range of functional requirements with minimum system complexity. It integrates high performance, reliability, and flexibility in equal measure. It is technically advanced yet functionally simple. It is backed by the design, engineering, and production resources of an acknowledged security and control technology leader. All of which accurately defines every access control solution that Linear delivers.
Traditional access control with the added dimension of radio: Our product line represents a completely modular approach. Your entry options are virtually unlimited. Telephone entry systems, keypads, and proximity devices can be integrated into a single network or furnished as individual sub-systems. Then, there’s our specialty, radio technology, which can form the basis of an entire system or can be used to equip an existing site with remote keyless entry and panic button functions.
Whether you need access control for a small office building, a multi-gated residential community, or a sprawling university campus, we have a system that can be precisely tailored by capacity and capability.
Faster setup, simple to maintain
Embedded Linux Operating System (OS)
MVP (Minimized Virus Potential)
No Microsoft update dependencies
Independent network, server, and dedicated workstation hardware are not required
Open platform allows for cost-effective integration with other technologies
Linear e3 Series Features
Common Features
Shared hardware and software architecture across all e3-Series
Reliable, IT-friendly embedded Linux operating system
SQL database with optional API available (Elite only)
Intuitive quick-start wizard
Browser-based management enables system status and updates from any place, on nearly any browser
Easily up-gradable to incorporate future e3 technology integrations
UL 294 Certification
Hardware Features
High-speed, 1GHz processor handles multiple simultaneous users and more than 30 transactions per second
Long-term event storage via micro-USB card and FTP back-up
Optional Power over Ethernet (PoE)
Controller and Expansion Node enclosure options:
Small footprint ruggedized plastic enclosure
All metal enclosures include supervised AC battery backup system
Step-up Power Supply (integrated and stand-alone)
10Amp – with Step-up Regulators provides both 12 and 24 VDC at the same time
Designed to lower the cost of installation by eliminating the conduit, interconnected wiring to power locks and auxiliary items
Software Features
Mobile-friendly user interface
Set-up wizard
Dashboard displays full system status-at-a-glance including:
Event and activity log
Customizable door diagrams/floor plans
Remote door lock and unlock with status view camera’s, photo id’s and defined events with acknowledgments
Time-saving and convenient features:
Integrated card decoder tool
Dynamic event filtering
Built-in audit-trail
Automatic daily data backup
Built-in documentation library
CSV flat file database import and export
E-mail, text message notifications
Simple, easy-to-use predefined reports
Micro SD or FTP-based storage
Essential & Elite Access Control
e3 Essential
The leading entry-level value comes as a 1–4 door system with immediate expansion capability to 4-doors / 8-readers (no additional hardware is needed to expand doors).
System easily expands capabilities via License-To-Go—grow your capabilities as your needs change.

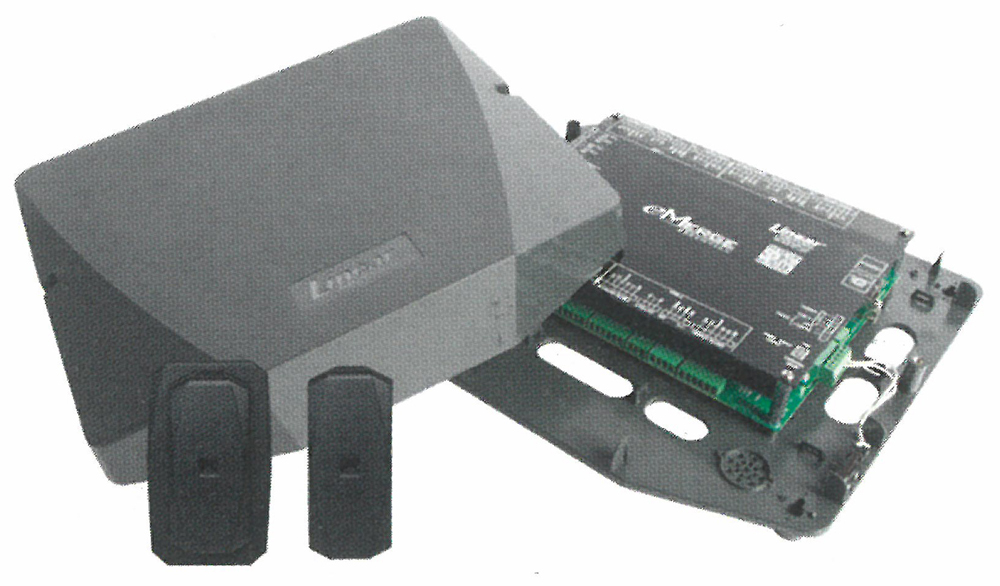

Essential: Housed in a compact plastic enclosure

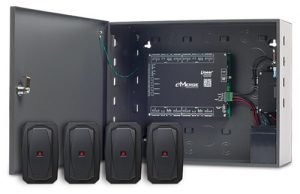

Essential Plus: Housed in a steel enclosure; includes supervised AC battery back-up
Easily scalable via software upgrade keys to higher capacity e3-Series eMerge Elite models
UL 294 Certification (Plus and Standard model)
e3 Elite
Feature rich system designed for 4 – 128 multi-door, multi-site systems
Elite ships starting with door license; expandable up to 128-doors
Includes Distributed Redundant Database (DRD) architecture
More users, doors, readers, online transactions and overall capacity
Advanced access control features & capabilities
Model option provides 10 Amp integrated power supply for locks and system
UL 294 certification (Metal housing models)
Telephone Entry with Access Control
Entry Series
Linear e3 Telephone Entry Access Control PDF
Access Control and Telephone Entry All-In-One
Browser-based system with embedded Linux for fast and easy remote management. No need for a PC or a server.
Easy-to-use interface with simple tone gesturing and visual cues.
Incredibly durable Linear ArmorTech polycarbonate housing stands against all elements. Light weight and RFI friendly.
Leverages existing technology investments. Compatible with 2 wire telephony options, POTS and VOIP for fast installations.
Linear e3 Entry 7” and 4.3” Multi-Door Telephone Entry and Access Control
72 input/output readers
Sensor adjusts brightness according to the environment
Sensor lights up the display when person is within 1 yard proximity
800 nits “High-bright” display – designed for direct sunlight applications
Entry ships starting with 2 doors; expandable up to 36-doors
Includes 4 in/out readers
Includes MegaCode Receiver, TTY Port, Power Transformer and mounting hardware
Works with all types of 2 wire telephony
Remote management capable
Integrated Networking / TCIP Port, RS485, RS422 Port and TTY Port
Durable ArmorTech polycarbonate and metal housing options
RMC - Remote Management Console
Secure Remote Access Control Anywhere, Anytime
Key Features:
Connect directly to your existing network infrastructure
Demonstrated firewall‐friendly web socket protocols
Secure, encrypted (SSL/TLS) connections
Forward with variety of TCP/IP based protocols, inc. HTTP(S)
Highly scalable up to thousands
Customize freely via API
Linear Remote Management Console (RMC) is uniquely designed for security solutions, leveraging Linear ecosystem. Linear RMC provides secure, remote, simultaneous connectivity to multiple access, video and security systems, even if the device is located in private or mobile network behind a router or firewall.
Linear RMC incorporates encrypted firewall tunneling technology linked to remote back‐end services, providing enhanced security and easy set‐up. You can manage your systems remotely with any device or platform, making RMC a superior, leading edge alternative to port forwarding and VPN networks. Linear RMC software provides a scalable and truly secure platform for remote management.
BluePass Smartphone Credentials/Readers
Linear BluePass Is The All-In-One Mobile Access Ecosystem With Both Bluetooth And Legacy Reader Capability
End-users experience a new level of convenience, as their Bluetooth-enabled smartphone becomes a mobile credential for their existing access control system. No need to carry a fob or card, and no more worries about misplaced fobs or cards. System managers can convert existing access systems to mobile credentials over time. The BluePass multi-technology reader works with existing cards and fobs, while enabling mobile credentials on the BluePass app.
A Combination Of Technologies For Exceptional User Experience
Bluetooth LE provides the secure transmission of the credential to the reader. Capacitive Touch-and-Present uses patented technology to transmit your data when in range. Like a traditional card, just touch and go by presenting the phone to the reader. 125kHz technology leverages your legacy credentials until they are no longer needed.
Unlike other offerings which require users to rotate their smart devices 90 degrees to activate Bluetooth signaling, or having to open an app, the BluePass user experience is identical to cards and fobs. Simply present the phone to the multi-tech reader to request access. This approach is far more natural and intuitive.
The app that transmits the credential to the reader uses very little power and merely needs to be running in the background. The app acts as a wallet and can store multiple credentials.
Cutting Edge Mobile Credentials for Efficient Access Issuance and Management
The BluePass solution provides for a lower cost of deployment from both an issuance and maintenance perspective. An invitation is sent to the end-users’ e-mail to download the app and their credentials – an easier, faster process compared to physical cards and fobs. The time and money saved by simply logging on and emailing users offers a tremendous advantage over other traditional credential technologies.
Ease Of Use And Cost Savings
BluePass is designed for simple use and lower cost of ownership. With Credentials-to-Go™, it’s fast and easy for the administrator to purchase more credentials. Select the amount needed, or order more when supply is depleted. Multiple credential credits packaged in card form are redeemable on the BluePass Cloud. No physical delivery or waiting for keys or fobs. Credentials-to-Go is as easy as redeeming a card online, with instantaneous delivery. Save money on shipping and deployment costs. Save time by emailing credentials instead of tracking down and delivering traditional cards by hand.
