The Fire Department Connection (FDC), also known as the Siamese Connection, is an important component found on most sprinkler and standpipe systems. When a sprinkler system activates, the fire department connects hose lines from a pumper truck to the fire department connection.
The Fire Department Connection (FDC), also known as the Siamese Connection, is an important component found on most sprinkler and standpipe systems. When a sprinkler system activates, the fire department connects hose lines from a pumper truck to the fire department connection.
FDCs are required on nearly all sprinkler systems installed to National Fire Protection Association (NFPA) 13, Standard for the Installation of Sprinkler Systems, 2007 and 2010 editions, and NFPA 13R, Standard for the Installation of Sprinkler Systems in Residential Occupancies Up to and Including Four Stories in Height, 2007 and 2010 editions.
The FDC is intended to provide sprinkler systems with a means to receive supplemental water support from fire department pumping apparatus. In cases where buildings have been shut down or abandoned, we often find the utility water service removed even though such removal is generally prohibited in the model fire codes.
Events such as floods, hurricanes, tornadoes, earthquakes, and similar events can interrupt utility-provided water either because of loss of power to pumping stations or damage to the water supply infrastructure piping. If these events were to interrupt the automatic water supply to a sprinkler system, then the only possibility of providing water to the sprinkler would be through the FDC. Fire departments are generally able to provide water supplies through tankers, shuttles, and drafting during such events long before the utility system is restored.
Inlet Connections
Exposed Inlet
Two-Way Exposed Fire Dept. Inlet Connection with Single Clapper 5710 – 5715FM Compliant UL Listed
Product Function: Used as an auxiliary inlet connection, providing a minimum 500 Gallons per Minutes (1892 Liters per Minutes) (Ref. NFPA 14) to supplement the fire protection water supply. Swing clapper provides unobstructed waterway. Exposed design is an economical method of satisfying fire dept. inlet requirements.
Regularly Furnished: Cast brass two-way inlet body, swing clapper and pin lug swivel. Back or angle outlet as selected by model number. Lettering as selected. Size 4 x 2.5 x 2.5 inch (10.2 x 6.4 x 6.4 cm)
Two-Way Exposed Fire Dept. Inlet Connection with Double Clapper 5721 – 5734UL Listed
Product Function: Used as an auxiliary inlet connection, providing 500 GPM/1892 lpm minimum (Ref. NFPA 14) to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Exposed design is an economical method of satisfying fire dept inlet requirements.
Regularly Furnished: Cast brass two-way inlet body, drop clappers and pin lug swivels. Size and outlet as selected by model number. Lettering as selected.
Three-Way Exposed Fire Dept. Inlet Connection with Triple Clapper 5740 – 5746
Product Function: Used as an auxiliary inlet connection, providing 750 GPM/2839 lpm minimum (Ref. NFPA 14) to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Exposed design feature is an economical method of satisfying fire dept. inlet connections.
Regularly Furnished: Cast brass three-way inlet body, drop clappers and pin lug swivels. Size and outlet location as selected by model number. Lettering as selected.
Two-Way Exposed Fire Dept. Inlet Connection with Double Clapper Plate & Plugs 5751 – 5754
Product Function: Used as an auxiliary inlet connection, providing 500 GPM/1892 lpm minimum (Ref. NFPA 14) to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Plate identifies and enhances appearance of inlet connection.
Regularly Furnished: Cast brass two-way inlet body with drop clappers, pin lug swivels and plugs and chains. Cast brass round wall plate with lettering as selected. Outlet and inlet size as selected by model number.
Flush Inlet
4.5″ Round Plate Single Inlet Flush Fire Dept. Connection 5005
Product Function: Used as an auxiliary inlet connection to supplement the fire protection water supply. Provides unobstructed waterway. Flush design desirable when appearance is a factor.
Regularly Furnished: Brass plate with lettering as selected. Polished brass snoot with rigid end NPT x pin lug hose thread swivel, pin lug plug and chain. Round or square plate; size as selected by model number.
8″ Round Plate Single Inlet Flush Fire Dept. Connection 5011 – 5013
Two-Way Flush Fire Dept. Inlet Connection 5021 – 5027UL Listed
Product Function: Used as an auxiliary inlet connection to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Flush design desirable when appearance is a factor.
Regularly Furnished: Cast brass body with drop clappers. Size, outlet location and number of inlets as selected by model number. Polished brass plate with lettering as selected. Polished brass 2.5 inch (6.4 cm) double female snoots with rigid end NPT x pin lug hose thread swivels, pin lug plugs and chains.
Three Way Flush Fire Dept Inlet Connection 5031 – 5033
Product Function: Used as an auxiliary inlet connection to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Flush design desirable when appearance is a factor.
Regularly Furnished: Cast brass body with drop clappers. Size, outlet location and number of inlets as selected by model number. Polished brass plate with lettering as selected. Polished brass 2.5 inch (6.4 cm) triple female snoots with rigid end NPT x pin lug hose thread swivels, pin lug plugs and chains.
Two-Way Flush Fire Dept. Clapper Body Type Inlet Connection 5104 – 5156UL Listed
Product Details:
Material: Brass Body , Ductile Iron Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
Six-Way Flush Fire Dept. Clapper Body Type Inlet Connection 5306 – 5348
Product Details:
Material: Brass Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: Back , Angle , End
No of Inlets: 6
GPM: 500 thru 1500
Outlet: 6″ , 8″
Four Way Square Flush Fire Dept. Clapper Body Type Inlet Connection 5406 – 5436UL Listed
Product Details:
Material: Brass Body , Ductile Iron Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: Back , Angle
No of Inlets: 4
UL Models: 5416 , 5136
GPM: 500 thru 1500
Outlet: 6″
UL: UL Listed
Two-Way Flush Fire Dept. Clapper Snoot Type Inlet Connection 5521 – 5538
Cast brass or ductile iron (thermally-fused red polyester coated) body. Type and size of outlet and number of inlets as selected by model number. Polished brass plate with lettering as selected. U/L listed polished brass double female clapper snoots with rigid end 3 inches (76.2 cm) NPT x 2.5 inches (6.4 cm) pin lug hose thread swivels, pin lug plugs and chains.
Product Details:
Material: Brass Body , Ductile Iron Body
No of Inlets: 2
No of Outlets: 1
Outlet: 4″ , 6″
Outlet Location: End , Angle , Back
Thread: NST
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
Four-Way Flush Fire Dept. Clapper Snoot Type Inlet Connection 5541 – 5548
Cast brass or ductile iron (thermally-fused red polyester coated) body. Type and size of outlet and number of inlets as selected by model number. Polished brass plate with lettering as selected. U/L listed polished brass double female clapper snoots with rigid end 3 inches (76.2 cm) NPT x 2.5 inches (6.4 cm) pin lug hose thread swivels, pin lug plugs and chains.
Product Details:
Material: Brass Body , Ductile Iron Body
No of Inlets: 4
No of Outlets: 1
Outlet: 6″
Outlet Location: End , Angle , Back
Thread: NST
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
Six-Way Flush Fire Dept. Clapper Snoot Type Inlet Connection 5561 – 5569
Cast brass or ductile iron (thermally-fused red polyester coated) body. Type and size of outlet and number of inlets as selected by model number. Polished brass plate with lettering as selected. U/L listed polished brass double female clapper snoots with rigid end 3 inches (76.2 cm) NPT x 2.5 inches (6.4 cm) pin lug hose thread swivels, pin lug plugs and chains.
Product Details:
Material: Brass Body
No of Inlets: 6
No of Outlets: 1
Outlet: 6″ , 8″
Outlet Location: Angle , Back , End
Thread: NST
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
Four-Way Square Flush Fire Dept. Clapper Snoot Type Inlet Connection 5581 thru 5586
Cast brass or ductile iron (thermally-fused red polyester coated) body. Type and size of outlet and number of inlets as selected by model number. Polished brass plate with lettering as selected. U/L listed polished brass double female clapper snoots with rigid end 3 inches (76.2 cm) NPT x 2.5 inches (6.4 cm) pin lug hose thread swivels, pin lug plugs and chains.
Product Details:
Material: Brass Body , Ductile Iron Body
No of Inlets: 4
No of Outlets: 1
Outlet: 6″
Outlet Location: Angle , Back
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
Thread: NST
Two-Way Flush Fire Dept. Clapper Snoot Type Steel Body Inlet Connection 5587 – 5588UL Listed
Product Details:
Material: Steel Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: End , Angle , Back
No of Inlets: 2
UL Models: All models in this series
Outlet: 4″ , 6″
UL: UL Listed
Four-Way Flush Fire Dept. Clapper Snoot Type Steel Body Inlet Connection 5589 Series UL Listed
Product Details:
Material: Steel Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: End , Angle , Back
No of Inlets: 4
UL Models: All models in this series
Outlet: 6″
UL: UL Listed
Six-Way Flush Fire Dept. Clapper Snoot Type Steel Body Inlet Connection 5590 – 5591UL Listed
Product Details:
Material: Steel Body
Size: See Submittal
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: End , Angle , Back
No of Inlets: 6
UL Models: All models in this series
Outlet: 6″ , 8″
UL: UL Listed
Free-Standing Inlet
Two-Way Free-Standing Fire Dept. Inlet Brass Body Connection with Clappers 5761 – 5764UL Listed
Product Function: Used as an auxiliary inlet connection to supplement the fire protection water supply. Free-standing design is used on exterior fire lines piped vertically through grade.
Regularly Furnished: Cast brass angle body or red glossy polyester coated ductile iron angle body, size of outlet and number and type of inlets as selected by model number. 18”/45.7 cm long polished brass cover sleeve; cast brass identification base plate, cast brass pin lug plugs and chains on each pin lug swivel.
Three-Way Free-Standing Fire Dept. Inlet Brass Body Connection with Clappers 5771 & 5773
Product Function: Used as an auxiliary inlet connection to supplement the fire protection water supply. Free-standing design is used on exterior fire lines piped vertically through grade.
Regularly Furnished: Cast brass angle body or red glossy polyester coated ductile iron angle body, size of outlet and number and type of inlets as selected by model number. 18”/45.7 cm long polished brass cover sleeve; cast brass identification base plate, cast brass pin lug plugs and chains on each pin lug swivel.
Product Function: FOUR-WAY SQUARE WITH CLAPPER SNOOTS
Product Details:
Material: Cast Brass Body , Polished Brass Cover Sleeve.Brass Base Plate , Ductile Iron Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: Bottom
No of Inlets: 4
Radius of Body Swing: 8″
GPM: 500
Inlet: 2.5″
Outlet: 6″
Height: 34″
Four-Way Square Free-Standing Inlet Connection with Clapper Body 5780 & 5781
Product Function: FOUR-WAY SQUARE WITH CLAPPER BODY
Product Details:
Material: Cast Brass Body , Polished Brass Cover Sleeve.Brass Base Plate , Ductile Iron Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: Bottom
No of Inlets: 4
Radius of Body Swing: 8″
GPM: 500
Inlet: 2.5″
Outlet: 6″
Height: 34″
Four-Way Free-Standing Inlet Connection with Clapper Body 5785 & 5786
Product Function: FOUR-WAY WITH CLAPPER BODY
Product Details:
Material: Cast Brass Body , Polished Brass Cover Sleeve.Brass Base Plate , Ductile Iron Body
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: Bottom
No of Inlets: 4
Radius of Body Swing: 17″
GPM: 500
Inlet: 2.5″
Outlet: 6″
Height: 26.5″
Six-Way Free-Standing Inlet Connection with Clapper Brass Body 5791 & 5792
Product Function: SIX-WAY WITH CLAPPER BODY
Product Details:
Material: Cast Brass Body , Polished Brass Cover Sleeve.Brass Base Plate
Lettering: AUTO SPKR , STANDPIPE , DRY STANDPIPE , AUTO SPKR STANDPIPE
No of Outlets: 1
Outlet Location: Bottom
No of Inlets: 6
Radius of Body Swing: 25″
GPM: 500
Inlet: 2.5″
Outlet: 6″ , 8″
Height: 26.5″
Storz Inlet
Storz Connections 5795 Series
Product Function: Used as an auxiliary inlet connection to supplement the fire protection water supply. A Storz connection provides a means of rapid supply through large diameter hose (LDH). Compliant with NFPA 1963 requirements.
Regularly Furnished: Hard coated aluminum with Storz on one end and female national pipe thread on the other.
Chained Storz Blind Caps 5799 Series
Material: Hard Coated Aluminum
Outlet Connections
Hydrant Outlet

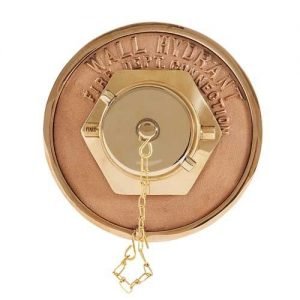

Single Hydrant Flush Fire Dept. Outlet Connection 5801 – 5813
Product Function: Used as an auxiliary water supply by the fire service. Single outlet suitable when water demand is under 500 GPM/1892 lpm (Ref. NFPA 20). Flush design desirable, when appearance is a factor.
Regularly Furnished: Polished brass plate lettered HYDRANT. Female NPT x male hose thread snoot with cap and chain. Round or square plate and size as selected by Model Number.
Two-Way Hydrant Flush Fire Dept. Outlet Connection 5821 – 5826
Product Function: Used as an auxiliary water supply by the fire service, flush design desirable when appearance is a factor. Two-way outlet suitable when water demand is under 750 GPM/2839 lpm, three-way is suitable when water is under 1000 GPM/3785 lpm Ref. NFPA 20.
Regularly Furnished: Brass body and polished brass plate lettered HYDRANT polished brass female NPT x male hose thread snoots with caps and chains. Number of snoots, size and inlet location as selected by model number.
Three-Way Hydrant Flush Fire Dept. Outlet Connection 5835 & 5836
Product Function: Used as an auxiliary water supply by the fire service. Two-way outlet suitable when water demand is under 750 GPM/2839 lpm, three-way outlet suitable when water demand is under 1000 GPM/3785 lpm.
Regularly Furnished: Cast brass back outlet body with caps and chains. Cast brass round wall plate lettered HYDRANT, inlet size and number of outlets as selected by Model Number.
Free-Standing Fire Dept. Outlet Connection 5845 – 5848
Product Function: Used as an auxiliary water supply by the fire service. Two-way outlet suitable when water demand is under 750 GPM/2839 lpm, three-way outlet suitable when water demand is under 1000 GPM/3785 lpm.
Regularly Furnished: Cast brass back angle body with male hose threads with caps and chains. 18”/45.7cm long polished brass cover sleeve and cast brass plate lettered HYDRANT, inlet size and number of outlets as selected by Model Number.
Flush Type Hydrant Valve Controls 5850 & 5852
Product Function: Used to control a remote, non-rising stem valve that supplies hydrants or test connections.
Regularly Furnished: Polished brass 7”/17.8 cm plate lettered HYDRANT VALVE CONTROL threaded 11/2”/3.8 cm female NPT on back and 21/2”/6.4 cm NST male on front with cap and chain. Rough brass 11/2”/3.8 cm NPT lock nut, 18”/45.7 cm long x 7/8”/2.2 cm square steel extension rod, with coupling for attachment to stem of gate valve.
Free-Standing Hydrant Valve Controls 5855
Product Function: Used to control a remote, non-rising stem valve that supplies hydrants or test connections.
Regularly Furnished: Polished brass round base plate lettered HYDRANT VALVE CONTROL threaded 11/2”/3.8 cm x 16”/40.6 cm long polished brass cover sleeve and cap chain. Rough brass 11/2”/3.8 cm NPT lock nut, 30”/76.2 cm long x 7/8”/2.2 cm square steel extension rod, with coupling for attachment to stem of below-grade gate valve.
Pump Test Outlet
Two-Way Flush Fire Pump Test Connections 5862
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets (Ref. NFPA 20).
Regularly Furnished: Cast brass body with end inlet, size and number of outlets as selected by model number. Brass plate lettered “PUMP TEST CONNECTION”. Brass NRS hose gate valves are supplied, with every other valve having a loose bonnet, as required for installation. 3”/7.6 cm female NPT inlet x 21/2”/6.4 cm male hose thread outlet, with caps and chains.
Three-Way Flush Fire Pump Test Connections 5863
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets (Ref. NFPA 20).
Regularly Furnished: Cast brass body with end inlet, size and number of outlets as selected by model number. Brass plate lettered “PUMP TEST CONNECTION”. Brass NRS hose gate valves are supplied, with every other valve having a loose bonnet, as required for installation. 3”/7.6 cm female NPT inlet x 21/2”/6.4 cm male hose thread outlet, with caps and chains.
Four-Way Flush Fire Pump Test Connections 5864
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets (Ref. NFPA 20).
Regularly Furnished: Cast brass body with end inlet, size and number of outlets as selected by model number. Brass plate lettered “PUMP TEST CONNECTION”. Brass NRS hose gate valves are supplied, with every other valve having a loose bonnet, as required for installation. 3”/7.6 cm female NPT inlet x 21/2”/6.4 cm male hose thread outlet, with caps and chains.
Six-Way Flush Fire Pump Test Connections 5865
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets (Ref. NFPA 20).
Regularly Furnished: Cast brass body with end inlet, size and number of outlets as selected by model number. Brass plate lettered “PUMP TEST CONNECTION”. Brass NRS hose gate valves are supplied, with every other valve having a loose bonnet, as required for installation. 3”/7.6 cm female NPT inlet x 21/2”/6.4 cm male hose thread outlet, with caps and chains.
Two-Way Free-Standing Fire Pump Test Connections 5866
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 gpm (946 lpm). Gate valves provide unrestricted waterway and control of individual outlets. (Ref. NFPA 20)
Regularly Furnished: Cast brass angle inlet body. Size of inlet and number of outlets as selected by Model Number. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet as required for installation, female NPT inlet x 2.5” (6.4 cm) male hose thread outlet, 2.5” (6.4 cm) caps and chains. 18” (45.7 cm) long polished brass cover sleeve and brass identification plate lettered “PUMP TEST CONNECTION.”
Three-Way Free-Standing Fire Pump Test Connections 5867
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets. (Ref. NFPA 20)
Regularly Furnished: Cast brass angle inlet body. Size of inlet and number of outlets as selected by Model Number. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet as required for installation, female NPT inlet x 21/2”/6.4 cm male hose thread outlet, 21/2”/6.4 cm caps and chains. 18”/45.7 cm long polished brass cover sleeve and brass identification plate lettered “PUMP TEST CONNECTION.”
Four-Way Free-Standing Fire Pump Test Connections 5868
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets. (Ref. NFPA 20)
Regularly Furnished: Cast brass angle inlet body. Size of inlet and number of outlets as selected by Model Number. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet as required for installation, female NPT inlet x 21/2”/6.4 cm male hose thread outlet, 21/2”/6.4 cm caps and chains. 18”/45.7 cm long polished brass cover sleeve and brass identification plate lettered “PUMP TEST CONNECTION.”
Six-Way Free-Standing Fire Pump Test Connections 5869
Product Function: Used to test flow capacity of fire pumps. Each outlet capable of a minimum flow of 250 GPM/946 lpm. Gate valves provide unrestricted waterway and control of individual outlets. (Ref. NFPA 20)
Regularly Furnished: Cast brass angle inlet body. Size of inlet and number of outlets as selected by Model Number. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet as required for installation, female NPT inlet x 21/2”/6.4 cm male hose thread outlet, 21/2”/6.4 cm caps and chains. 18”/45.7 cm long polished brass cover sleeve and brass identification plate lettered “PUMP TEST CONNECTION.”
Roof Outlet
Two-Way Male Roof Fire Dept. Outlet Connections 5871 thru 5879
Product Function: Used as a standpipe roof outlet connection by the fire service. Provides 250 GPM/946 lpm minimum per outlet (Ref. NFPA 14). Used with straight or angle hose valves to provide water control. Refer to Section 4000 for valve selection.
Regularly Furnished: Cast brass body with female NPT inlet and male NPT outlets. Type and size of inlet and number of outlets as selected by Model Number.
Three-Way Male Roof Fire Dept. Outlet Connections 5881 – 5889
Product Function: Used as a standpipe roof outlet connection by the fire service. Provides 250 GPM/946 lpm minimum per outlet (Ref. NFPA 14). Used with straight or angle hose valves to provide water control. Refer to Section 4000 for valve selection.
Regularly Furnished: Cast brass body with female NPT inlet and male NPT outlets. Type and size of inlet and number of outlets as selected by Model Number.
Three-Way Female Roof Fire Dept. Outlet Connections 5890 & 5892
Product Function: Used as a standpipe roof outlet connection by the fire service. Provides 250 GPM/946 lpm minimum per outlet (Ref. NFPA 14). Used with straight or angle hose valves to provide water control. Refer to Section 4000 for valve selection.
Regularly Furnished: Cast brass body with female NPT inlet and male NPT outlets. Type and size of inlet and number of outlets as selected by Model Number.
Connection Accessories
“Cap-It” Locking Cap for Fire Dept. Connections 4625-LC and 4630-LC
Product Function: Protects fire department connections from trash, contamination and vandalism – events that render the FDC useless and could result in loss of life and property. It’s easily identifiable design lets the fire department know that the connection has not been tampered with. It is easily removable by the fire department using standard equipment.
Regularly Furnished: Cap is constructed of heavy gage steel, painted red or plated.
Female x Male Open Snoot 5902 – 5905
Product Function: Used to connect fire hose to a standpipe or sprinkler system.
Regularly Furnished: Cast brass connection with size and type of inlet and outlet as selected by Model Number. Polished brass exposed parts.
Female x Male Open Snoot with Pin Lug Swivel 5911 – 5915
Product Function: Used to connect fire hose to a standpipe or sprinkler system.
Regularly Furnished: Cast brass connection with size and type of inlet and outlet as selected by Model Number. Polished brass exposed parts.
Hex Type Female x Female Open Snoot with Pin Lug Swivel 5922 – 5925
Product Function: Used to connect fire hose to a standpipe or sprinkler system.
Regularly Furnished: Cast brass connection with size and type of inlet and outlet as selected by Model Number. Polished brass exposed parts.
Spring Type Check Snoot with Pin Lug Swivel 5930 – 5936
Product Function: Used to connect fire hose on multiple inlet fire dept. connections. Acts as a check against an excess backflow of water.
Regularly Furnished: Cast brass connection with size and type of inlet and outlet as selected by Model Number. Polished brass exposed parts.
Clapper Type Check Snoot with Pin Lug Swivel 5937 & 5938UL Listed
Product Function: Used to connect fire hose on multiple inlet fire dept connections. Acts as a check against an excess backflow of water.
Regularly Furnished: Cast brass connection with size and type of inlet and outlet as selected by Model Number. Polished brass exposed parts.
Chained Pin Lug Plug 5941 – 5944
Product Function: Used on fire dept inlet connections. Discourages entry of foreign matter and protects female threads.
Product Details:
Material: Cast Brass Pin Lug Plug
Size: 2.5″ Male Hose Thread , 3″ Male Hose Thread , 4″ Male Hose Thread
Chained Pentegonal Head Plug 5945 & 5948
Material: Cast Brass Pin Lug Plug
Size: 2.5″ Male Hose Thread , 3″ Male Hose Thread
Breakable Caps 5950 & 5953
Product Function: Used on fire dept. inlet connections. Discourages entry of foreign matter and protects female threads. Breakable feature allows fast hose hook-up.
Regularly Furnished: Aluminum cover with breakable ears; two eye bolts and nuts for attachment to female pin lug swivel.
Round Identification Plates 5962 – 5968
Product Function: Used to identify and trim exposed fire dept connection installations.
Regularly Furnished: Brass or red finish aluminum plate, size and material as selected by Model Number. Lettering as selected.
Rectangular Identification Plates 5970 & 5975
Product Function: Used with fire dept. connections for identification.
Regularly Furnished: 4 x 8”/10.2 cm x 20.4 cm brass or red finish aluminum plate, material as selected by Model Number. Lettering as selected.
Automatic Drain Device 5981 – 5984
Product Function: Used to drain low point of system between fire dept connection and swing check valve. Seals automatically under pressure. Installed in horizontal position only.
Regularly Furnished: Cast brass angle or straight connection, male NPT both ends. Size and design as selected by Model Number.

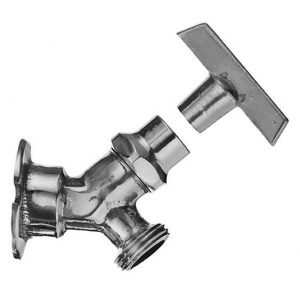

Sillcock 5990
Product Function: Used to manually drain low point of system between fire dept. connection and swing check valves.
Regularly Furnished: Polished brass flanged sillcock with 3/4”/1.9 cm female NPT inlet x male GHT; stem shield and removable tee handle key.
Two-Way Exposed Fire Dept. Inlet Connection with Single Clapper 5710 – 5715FM Compliant UL Listed
Two-Way Exposed Fire Dept. Inlet Connection with Double Clapper 5721 – 5734UL Listed
Three-Way Exposed Fire Dept. Inlet Connection with Triple Clapper 5740 – 5746
Two-Way Exposed Fire Dept. Inlet Connection with Double Clapper Plate & Plugs 5751 – 5754
4.5″ Round Plate Single Inlet Flush Fire Dept. Connection 5005
8″ Round Plate Single Inlet Flush Fire Dept. Connection 5011 – 5013
8″ Square Plate Single Inlet Flush Fire Dept. Connection 5016 – 5018
Two-Way Flush Fire Dept. Inlet Connection 5021 – 5027UL Listed
Three Way Flush Fire Dept Inlet Connection 5031 – 5033
Two-Way Flush Fire Dept. Clapper Body Type Inlet Connection 5104 – 5156UL Listed
Four-Way Flush Fire Dept. Clapper Body Type Inlet Connection 5206 – 5256UL Listed
Six-Way Flush Fire Dept. Clapper Body Type Inlet Connection 5306 – 5348
Four Way Square Flush Fire Dept. Clapper Body Type Inlet Connection 5406 – 5436UL Listed
Two-Way Flush Fire Dept. Clapper Snoot Type Inlet Connection 5521 – 5538
Four-Way Flush Fire Dept. Clapper Snoot Type Inlet Connection 5541 – 5548
Six-Way Flush Fire Dept. Clapper Snoot Type Inlet Connection 5561 – 5569
Four-Way Square Flush Fire Dept. Clapper Snoot Type Inlet Connection 5581 thru 5586
Two-Way Flush Fire Dept. Clapper Snoot Type Steel Body Inlet Connection 5587 – 5588UL Listed
Four-Way Flush Fire Dept. Clapper Snoot Type Steel Body Inlet Connection 5589 Series UL Listed
Six-Way Flush Fire Dept. Clapper Snoot Type Steel Body Inlet Connection 5590 – 5591UL Listed
Two-Way Free-Standing Fire Dept. Inlet Brass Body Connection with Clappers 5761 – 5764UL Listed
Three-Way Free-Standing Fire Dept. Inlet Brass Body Connection with Clappers 5771 & 5773
Four-Way Square Free-Standing Inlet Connection with Clapper Snoots 5775 & 5776
Four-Way Square Free-Standing Inlet Connection with Clapper Body 5780 & 5781
Four-Way Free-Standing Inlet Connection with Clapper Body 5785 & 5786
Six-Way Free-Standing Inlet Connection with Clapper Brass Body 5791 & 5792
Storz Connections 5795 Series
Chained Storz Blind Caps 5799 Series
Single Hydrant Flush Fire Dept. Outlet Connection 5801 – 5813
Two-Way Hydrant Flush Fire Dept. Outlet Connection 5821 – 5826
Three-Way Hydrant Flush Fire Dept. Outlet Connection 5835 & 5836
Exposed Fire Dept. Outlet Connection 5840 – 5843
Free-Standing Fire Dept. Outlet Connection 5845 – 5848
Flush Type Hydrant Valve Controls 5850 & 5852
Free-Standing Hydrant Valve Controls 5855
Two-Way Flush Fire Pump Test Connections 5862
Three-Way Flush Fire Pump Test Connections 5863
Four-Way Flush Fire Pump Test Connections 5864
Six-Way Flush Fire Pump Test Connections 5865
Two-Way Free-Standing Fire Pump Test Connections 5866
Three-Way Free-Standing Fire Pump Test Connections 5867
Four-Way Free-Standing Fire Pump Test Connections 5868
Six-Way Free-Standing Fire Pump Test Connections 5869
Two-Way Male Roof Fire Dept. Outlet Connections 5871 thru 5879
Three-Way Male Roof Fire Dept. Outlet Connections 5881 – 5889
Three-Way Female Roof Fire Dept. Outlet Connections 5890 & 5892
“Cap-It” Locking Cap for Fire Dept. Connections 4625-LC and 4630-LC
Female x Male Open Snoot 5902 – 5905
Female x Male Open Snoot with Pin Lug Swivel 5911 – 5915
Hex Type Female x Female Open Snoot with Pin Lug Swivel 5922 – 5925
Spring Type Check Snoot with Pin Lug Swivel 5930 – 5936
Clapper Type Check Snoot with Pin Lug Swivel 5937 & 5938UL Listed
Chained Pin Lug Plug 5941 – 5944
Chained Pentegonal Head Plug 5945 & 5948
Breakable Caps 5950 & 5953
Round Identification Plates 5962 – 5968
Rectangular Identification Plates 5970 & 5975
Automatic Drain Device 5981 – 5984
Sillcock 5990
